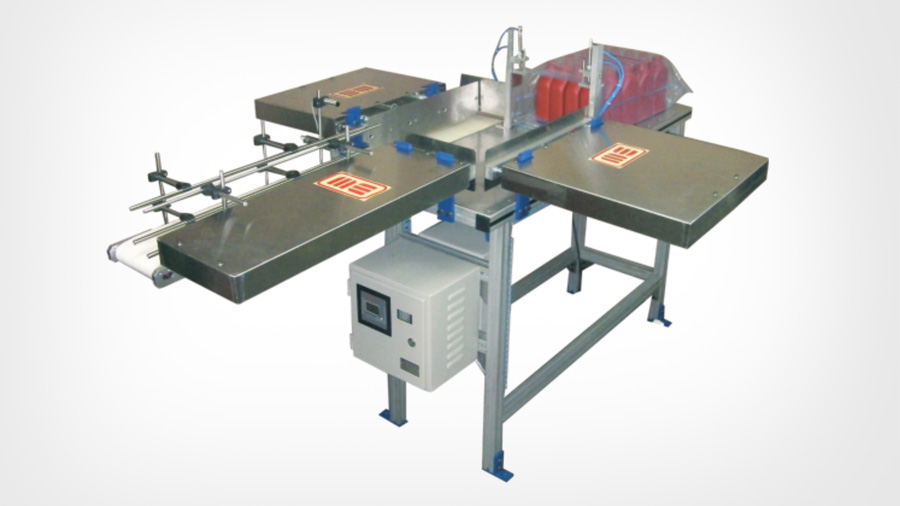

Why bagging machine?

The cost of bagging being averagley only 20% of the cost of cardboard packing, reducing labor drastically and often allowing to get more per pallet posting in the truck, it is clear to say, that bagging is the future of bottle packing. We did not even mention yet the advantages for the food industry: no physical contact with the finished product anymore and no risk for cardboard contatamination.

Payback of the investment in bagged bottle packing is achieved between 6 months and 2 years. The main obstacle, faced by our customers, is to convince their customers to change the way they work; this usually happens if there is a substantial cost reduction between their actual packing and the new.

All of our bagging machines are, within their range of settings, able to produce different packing lengths and widths to optimize pallet stability. They have also been designed to handle difficult bottles and make fast change – over's.

  • Container size upto 5 ltrs.
  • Martix size l x b x h 1200 x 550 x 350 mm.
  • Bag size upto 40" wide and 60" long.
  • Speed 1 hrs upto 70bpm.
  • Power supply 230 volt.
  • Weight 100 kg.
  • Height 900 mm.
  • Festo pneumatic.
  • Adjustable matrix (row and columns).
  • Adjustable bag sizes.
  • Adjustable height.
  • Adjustable plates for pushing matrix.
  • Pneumatic based bag tensionary.
  • Adjustable conveyor speed.
  • Container size upto 5 ltrs.
  • Martix size l x b x h 1200 x 550 x 350 mm.
  • Bag size upto 40" wide and 60" long.
  • Speed 1 Ltr : upto 70bpm.
  • Power supply : 230 Vac, Single Phase.
  • Weight : 150 kg.
  • Height 900 mm.
  • Air Consumption : 1-2 CFM
  • Working Air Pressure : 4 ~ 6 Bars.
